Automotive Cable Line Specification

3D Design

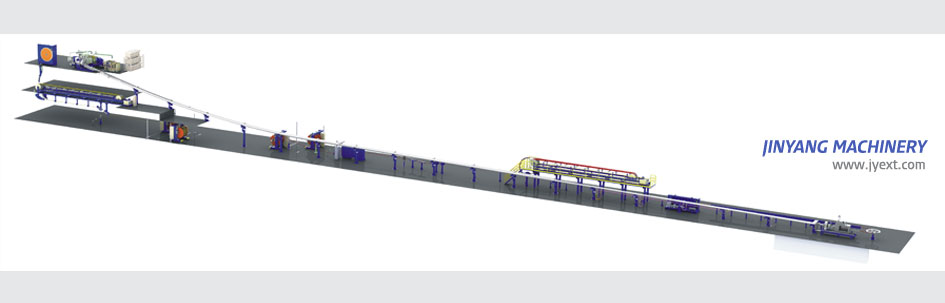

Specification, designing, and installation of CV line can be very difficult for the cable company. Also, having multiple CV lines in one plant can be a headache to the project manager due to its large size, making it difficult to find a home. Jin Yang Machinery utilizes 3D cad drawing in order to meet, the customer's various needs and configuration. 3D cad drawing also gives advantages to the customers who are concerned about the available space in their existing location. By using 3D cad drawing, we can optimize the space available for the CV line increasing the potential performance of the company.

Customized Configuration

JMC CV line's units and machines can be changed to meet customers individual needs. We do not believe that every cable company must be the same. Different companies have different needs, operators, and special products. Throughout our many specification meetings and plant visits from us,
we can meet our customer's needs perfectly.

Preformance, Easiness, and safety

Running the CV line can be dangerous from time to time; caused by the heat and high pressure steam. Jin Yang machinery has improved many safety features on our line from many years of CV line experience. Safety does not equal difficult to operate. We optimize the machines in a balanced triangle: performance, easiness, and safety; to use 100% full potential of the line.

DT Pay-Off (JMC PT P/O-1600)
bobbin : Ø900 ~ Ø1600
Weight : Max 6.5 ton
Bar Dancer (JMC BDC-1500)
Wire : Ø35 ~ Ø50
Roller : Ø80
Accumulator (JMC ACC-1000)
Wheel : Ø1000
Wire : Ø6 ~ Ø35
Guide Roller (JMC GR-CV)
Air Catcher (JMC AC-CV)
OP Panel Touch panel
Various Languages
CCTV throughout CV line
Extruders(JMC CVEXT)
Size : Ø40 ~ Ø120
Different configuration
Depends on customers need
Optional Logging System
Temperature Units
# Of Unites depends on customers need
Steam control Unit
Splice Box (JMC SPB-1000)
Stroke Range : 1000 mm
Integrated X-ray Device
Heating / Cooing Tubes (JMC CT)
Various size/length
Depends customers Need
Heating / Cooing Tubes (JMC CT)
Various size/length
Depends customers Need
End Seal Box
(JMC ESB-DUAL 120)
Hydraulic locking
Interchangeable seal
Caterpillar (JMC TBC-2400)
Line Speed : Max 150 MPM
Through Length : 2400 mm
DT Take-Up (JMC PT T/U-1600)
bobbin : Ø900 ~ Ø1600
Weight : Max 6.5 ton
Metering Capstan (JMC MET-2000)
Speed : Max 150MPM
Wheel : Ø2000
OP Panel Touch panel
Various Languages
CCTV throughout CV line
Position Controller
